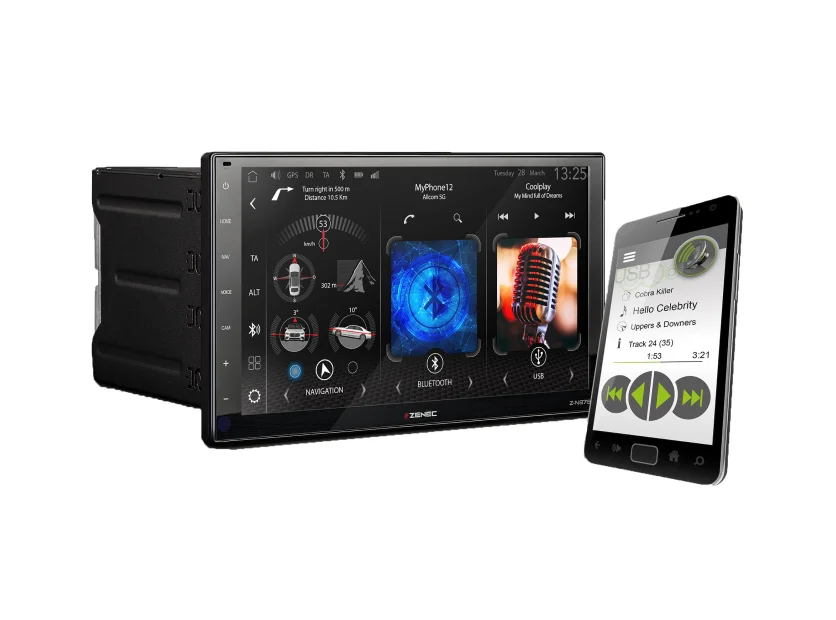

ZENEC Z-N976 UNIT

Description

The Z-N976 connects wirelessly to your smartphone via WLAN. Make phone calls, navigate or simply listen to music and podcasts. All supported functions can be conveniently controlled via Apple Siri, the Google voice assistant or via the touchscreen of the ZENEC device.

Expandable with navigation

Optional navigation packages are available for the Z-N976: Z-EMAP76MH-TT3 (QQ03883E) specifically for motorhomes. Both packages contain 3D map data for 44 countries in Western and Eastern Europe as well as 6.5 million POI. When route guidance is active, additional information is provided, e.g. through the TPEG service, which shows real-time traffic data.

Connection of up to three cameras (optional)

The Z-N976 supports up to three cameras, which can be controlled directly via the screen or the CAM sensor button. The camera image switches on automatically when reverse gear is engaged, including microphone. Via the setup menu, you can display grid lines as a camera image overlay. The auxiliary lines improve the distance estimation and can be adjusted to the vehicle size.

• 2-DIN infotainment system, expandable with separately available offline GPS navigation packages*1
• Novel graphical user-interface for simultaneous presentation and control of internal and external data sources on the device screen
• Touch sensitive, capacitive 9”/22.9 cm LCD-TFT display (1024 x 600 pixels) with real glass surface
• OSD menu in 15 different EU languages
• DAB+ twin-tuner with dynamic station list, DAB-FM and DAB-DAB Service Following, MOT slideshow and DLS-text
• New generation FM RDS radio
• Works with wireless Google Android AutoTM
• Works with wireless Apple CarPlay
• Made for iPod / iPhone
• Bluetooth LE 5.0 hands-free module with HFP v1.7 and A2DP music streaming
• Control of up to three CVBS signal camera systems with auto switching and individually adjustable distance-helper lines
• Ready for connection and control of ZENEC “Multi-view” reversing camera systems
• CAM sensor key for direct camera function control on device front panel (Cam1, Cam2, Cam3)
• SP-REM remote control App (iOS / Android) for smartphone operation of audio playback functions
• Android operating system for embedded systems that can be updated via software update*2
• RGB multicolor sensor key illumination.
• Connecting the multifunction steering wheel
• The IR-IN input on the Z-N976 can be used to connect optionally available vehicle-specific CAN/Stalk interfaces. The interface connects the Z-N976 to the vehicle CAN and the buttons of the multifunction steering wheel
